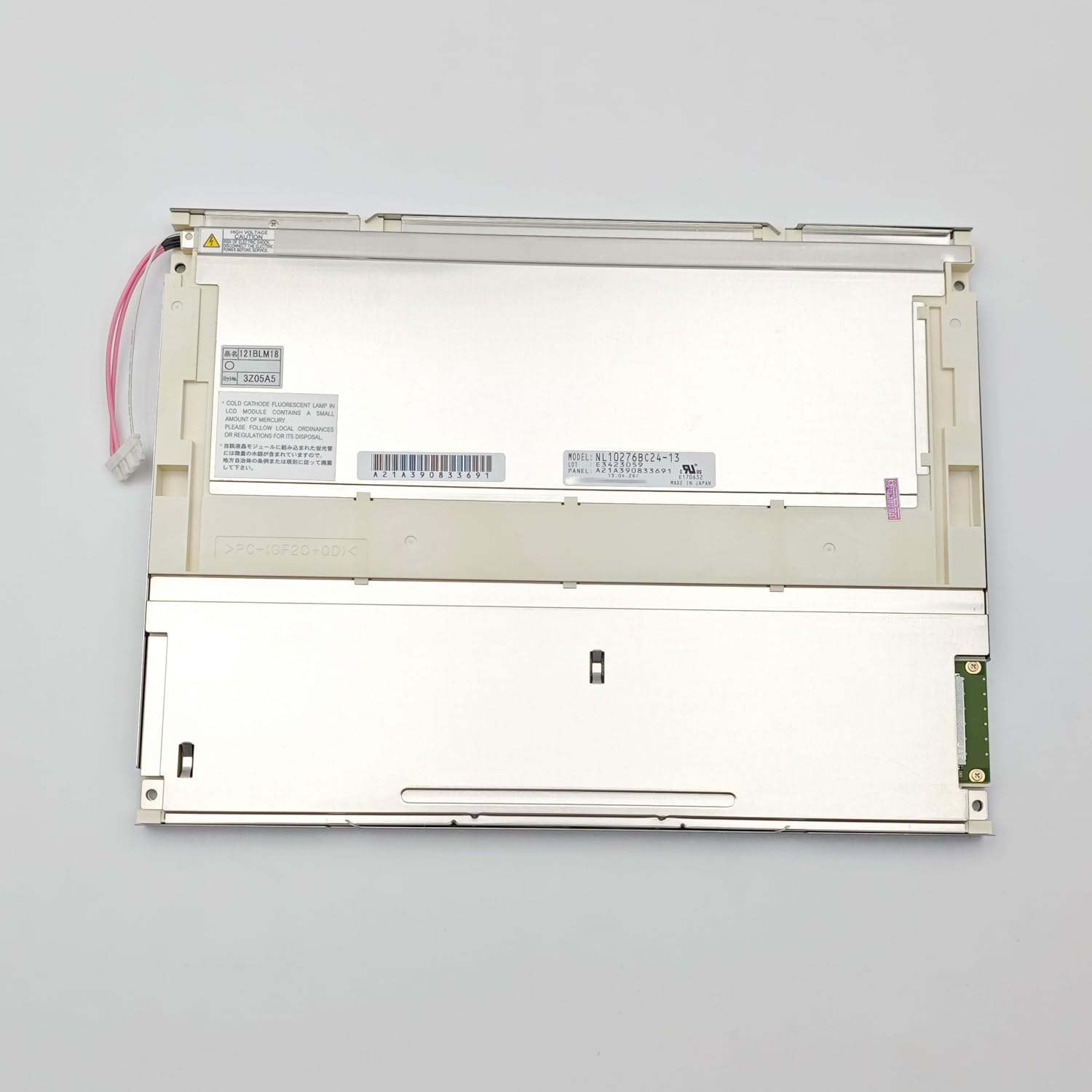

NL10276BC24-13 12.1 inch LCD Display Screen Replacement 1024x768 LVDS CCFL Backlight Industrial Monitor Panel for Repair

NL10276BC24-13 12.1 inch LCD Display Screen Replacement 1024x768 LVDS CCFL Backlight Industrial Monitor Panel for Repair 12.1-inch XGA LCD Module – Industrial Replacement Display Display Performance Screen Size: 12.1 inch diagonal Resolution: 1024(RGB)×768 (XGA), 4:3 aspect ratio Brightness: 400 cd/m² (Typical) Contrast Ratio: 600:1 (Typical) Viewing Angle: 70° / 70° / 45° / 55° (L/R/U/D, CR≥10) Best View Direction: 6 o'clock Response Time: 8 ms (Tr) / 25 ms (Td) Color Support: 262K / 16.7M colors (6-bit / 6-bit + Hi-FRC) Color Gamut: 40% NTSC Refresh Rate: 60 Hz Mechanical Specifications Active Area: 245.76 × 184.32 mm (H×V) Outline Dimension: 280.0 × 210.0 × 13.7 mm (H×V×D) Viewing Area: 249.0 × 187.5 mm (H×V) Surface Treatment: Clear, Hard Coating (3H) Dot Layout: RGB Vertical Stripe Interface & Power Signal Type: LVDS (1 channel, 6/8-bit) Connector: 20 pins Supply Voltage: 3.3V (Typical) Power Consumption: 7.0W (Typical) Backlight: 2 pcs CCFL (Cold Cathode Fluorescent Lamp) Backlight Driver: Optional (not included) Environmental & Reliability Operating Temperature: -10 ~ +70 °C Storage Temperature: -20 ~ +80 °C Vibration Resistance: 2.0G (19.6 m/s²) Display Type: a-Si TFT-LCD, TN, Normally White, Transmissive Typical Applications - Industrial control panels and HMI devices - Medical monitoring equipment - Test and measurement instruments - POS systems and self-service kiosks - CNC machine displays - Replacement for failed or aging displays in existing systems Important Notes Before Purchase This module uses CCFL backlight, NOT LED. A compatible inverter (backlight driver) is required separately and is not included. Confirm your system uses LVDS (1 channel, 6/8-bit) with 20-pin connector before ordering. Verify mounting dimensions: Active area 245.76×184.32 mm, Outline 280×210×13.7 mm. Suitable for repair, maintenance, or system integration by qualified technicians.

• Perfect Replacement for Model NL10276BC24-13. Directly compatible with standard LVDS (1 channel, 6/8-bit) interface and 20-pin connector. Standard 3.3V power supply.
• Premium Display Quality. 12.1-inch diagonal with XGA (1024x768) resolution and 4:3 aspect ratio. Offers sharp details (105 PPI), high brightness at 400 cd/m², and a clear contrast ratio of 600:1
• Built for Industrial & Harsh Environments. Wide operating temperature range from -10°C to 70°C (14°F to 158°F) and storage down to -20°C. Passed 2.0G vibration resistance test, ensuring reliability in factory, outdoor kiosks, or automotive applications.
• Technical Specifications. Response time: 8/25 ms (Tr/Td). Viewing Angle: 70/70/45/55 (L/R/U/D). Display Colors: 16.7M (with 8-bit input). Backlight: 2 pcs CCFL
• Versatile Applications. Specifically designed as a replacement for industrial PCs (IPC), medical monitoring equipment, POS systems, CNC machines, and test & measurement instruments.
