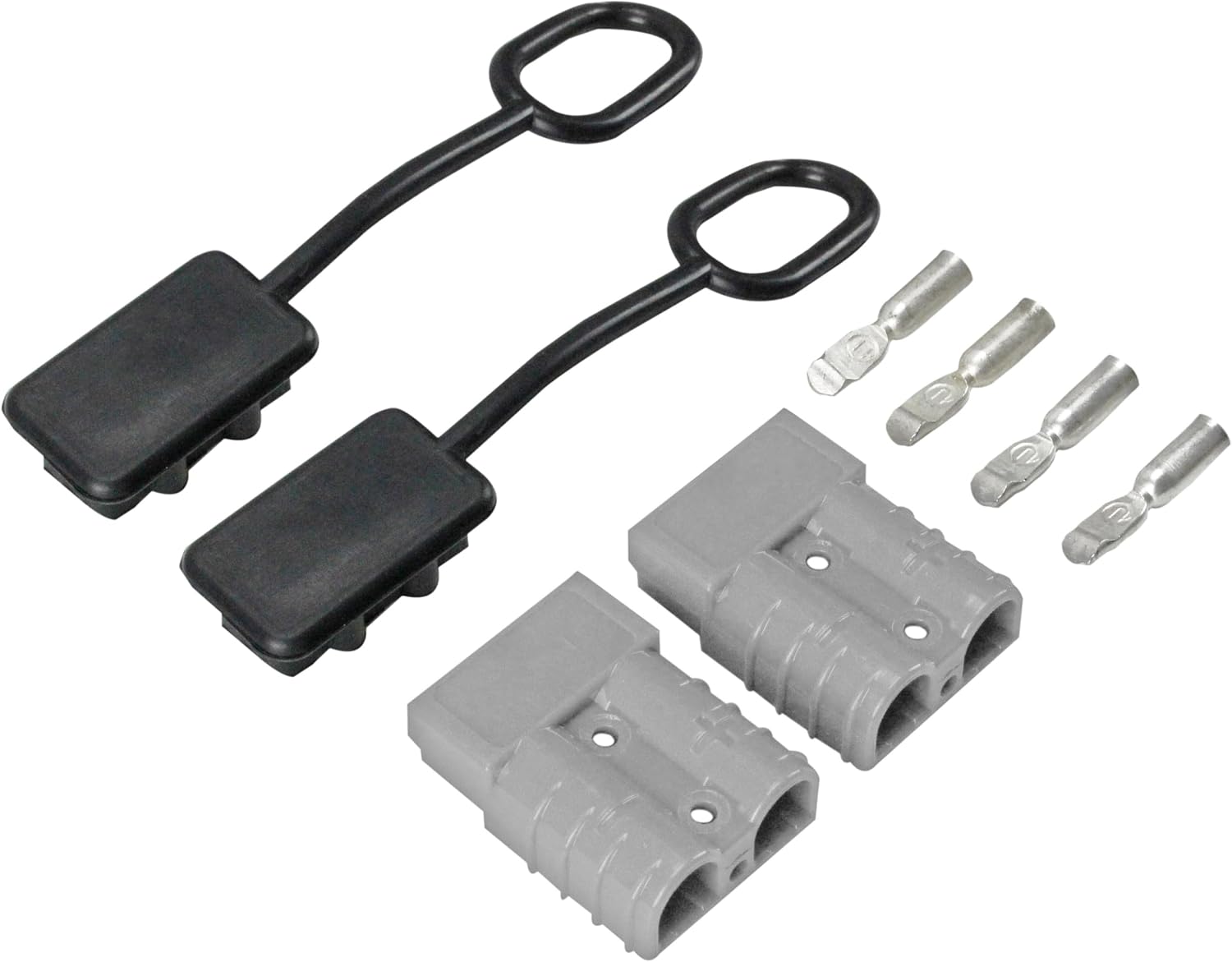

Extreme Max 5600.3102 Quick Connect Battery Plug for ATV/UTV Winches - Each
Product details
| Management number | 233785799 | Release Date | 2026/06/27 | List Price | US$6.84 | Model Number | 233785799 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Connect and disconnect power to winches or other equipment quickly and easily. This quick connector is designed for use with low voltage (12 - 36V DC) equipment like ATV/UTV winches. The tough polycarbonate shell protects T2 silver-plated terminal pins that can accommodate 6-8 gauge wire. Rubber caps are attached to protect components from debris and moisture when not connected. Designed for easy installation. Simply insert wires into terminal pins and crimp or solder. Insert terminals into the connector housing and secure. Identical connector ends allow user to connect to either power or load side.
- IP20 protection, CSA, UL, and CUL listed
- T2 silver plated terminal pins accommodate 6-8 gauge wire
- Quick connector set allows quick, easy connection and disconnection for ATV winches and other low voltage equipment
- For 12-36V DC, rated capacity 50 Amps
- Polycarbonate shell with rubber caps on each end
| UPC | 814166025261 |
|---|---|
| ASIN | B00VRF7640 |
| Color | Gray |
| Model | 5600.3102 |
| Voltage | 36 Volts |
| Amperage | 50 Amps |
| Plug Type | Type B |
| Brand Name | Extreme Max |
| Unit Count | 1.0 Count |
| Item Weight | 0.19 Pounds |
| Part Number | 5600.3102 |
| Manufacturer | Extreme Max |
| Material Type | Polycarbonate (PC), Rubber |
| Product Grade | Industrial |
| Connector Type | Crimp |
| Item Type Name | Extreme Max 5600.3102 Quick Connect Battery Plug for ATV/UTV Winches - Each |
| Number Of Wires | 1 |
| Number of Poles | 2 |
| Specification Met | UL |
| Included Components | Extreme Max 5600.3102 Quick Connect Battery Plug for ATV / UTV Winches |
